01-10 GM 2500 5" Performance Lift System

$11,330.00

Shock Package
Add Deaver Performance Leaf Springs

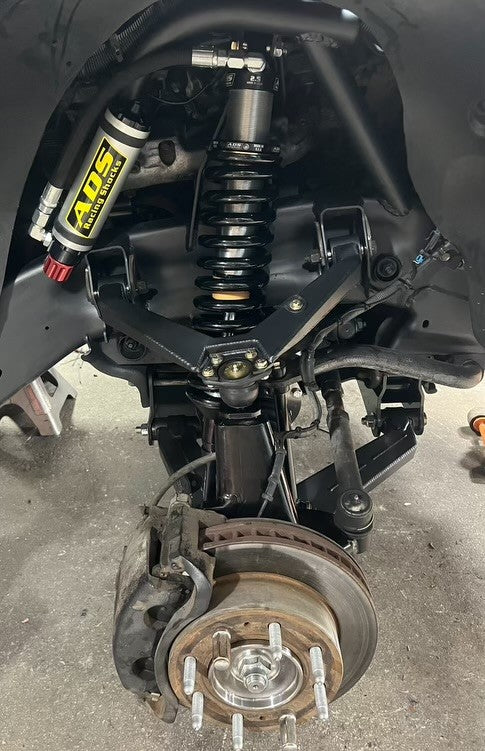

Patriot Performance proudly presents the 01-10 2500HD 5" Performance Lift System, the most robust lift kit available for the GM 2500 platform. This system features fully fabricated upper and lower arms along with a fabricated shock tower/hoop setup, robust Cognito fabricated drop brackets, and fully fabricated spindles. These components replace the factory torsion bars, substantially enhancing the vehicle's performance both on and off the road.

EACH PATRIOT PERFORMANCE 5" PERFORMANCE LIFT SYSTEM INCLUDES THE FOLLOWING

  • Fabricated Upper & Lower Control Arms with a durable black powdercoat finish
  • Cognito Subframe Drop Brackers
  • Cognito HD Spindles
  • Sub Frame Skid Plate
  • Shock Tower Weld If Yourself Assemblies
  • Proprietary ADS or KING Coilovers
  • Shock Reservoir Clamps
  • Frame Cover Plates
  • Limit Straps with Adjustable Clevis
  • Differential Drop Brackets
  • Sway Bar Endlinks
  • Stainless Brake Lines
  • Axle Spacers
  • 2" Rear Blocks & U bolts
  • Extra can of STEEL-IT for painting frame after shock tower & limit strap clevis installation.

SYSTEM REQUIREMENTS

  • WELDING – This is a system designed to be installed by a proficient shop or individual with the neccesary fabrication skills.
  • CUSTOM SHOCK TOWER CROSSOVER BRACE - When heavily used offroad the frames of these trucks are susceptable to flexing, we recommend building a custom crossover brace to tie the shock towers together.

SHOCK CONFIGURATION

  • ADS Coilovers + Rear Shocks w/ Compression Adjusters - Our recommended shock package due to the ability to quickly adjust compression/rebound settings. NOTE: Coilovers may be configured with silver Eibach springs or Black VPR springs depending on availability - Estimated Lead Time 2-3 weeks
  • ADS Coilovers + Rear Shocks w/o Compression Adjusters NOTE: Coilovers may be configured with silver Eibach springs or Black VPR springs depending on availability - Estimated Lead Time 2-3 weeks.
  • KING Coilovers + Rear Shocks w/o Compression Adjusters NOTE: Coilovers may be configured with silver Eibach springs or Black VPR springs - Estimated Lead Time 8-12 weeks.

DEAVER PERFORMANCE LEAF SPRINGS

  • Our recommended leaf spring replacements from Deaver. NOTE: Leaf springs are stock height replacements designed to be used with included u-bolts & blocks, and are compatable with towing bags.

SHIPPING

  • This system requires shipping via freight on a pallet when adding the performance leaf springs package - Shipping is included for COMMERECIAL deliveries - Please contact us for a shipping quote BEFORE purchase if shipping to a residential address.

IMPORTANT NOTES

  • Fits All 2001-2010 Silverado/Sierra 2500HD
  • This system can be configured with Kryptonite balljoints, but will have an extended lead time due to availability - Contact Us for more info.
  • The original shock mounts are eliminated as part of this upgrade and would require fabrication to be returned to a factory configuration.
  • If the installer has any questions about this kit have them contact us at info@patriotperformance.com
  • ***NO RETURNS OR REFUNDS ONCE ORDER IS PLACED***
